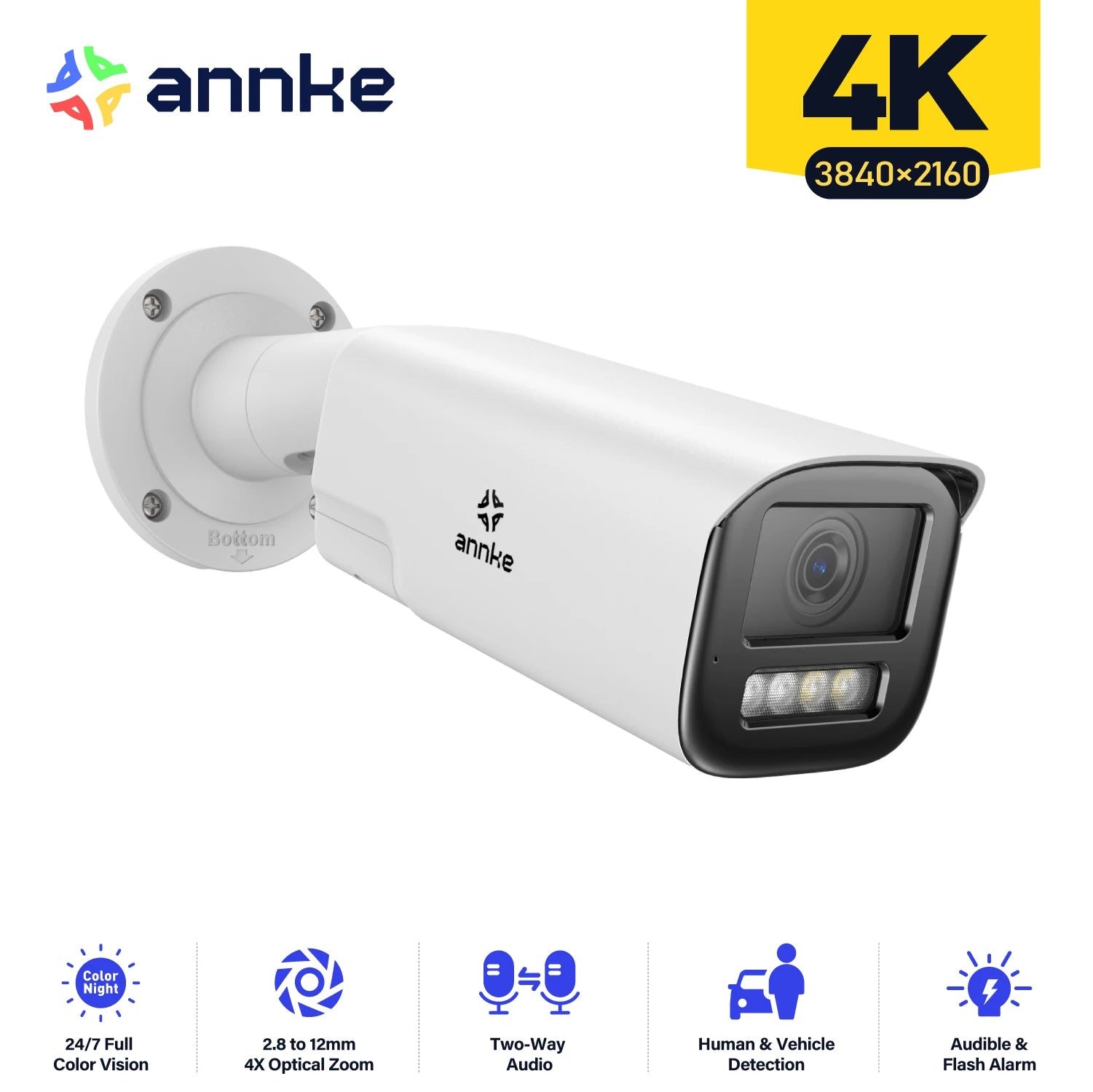

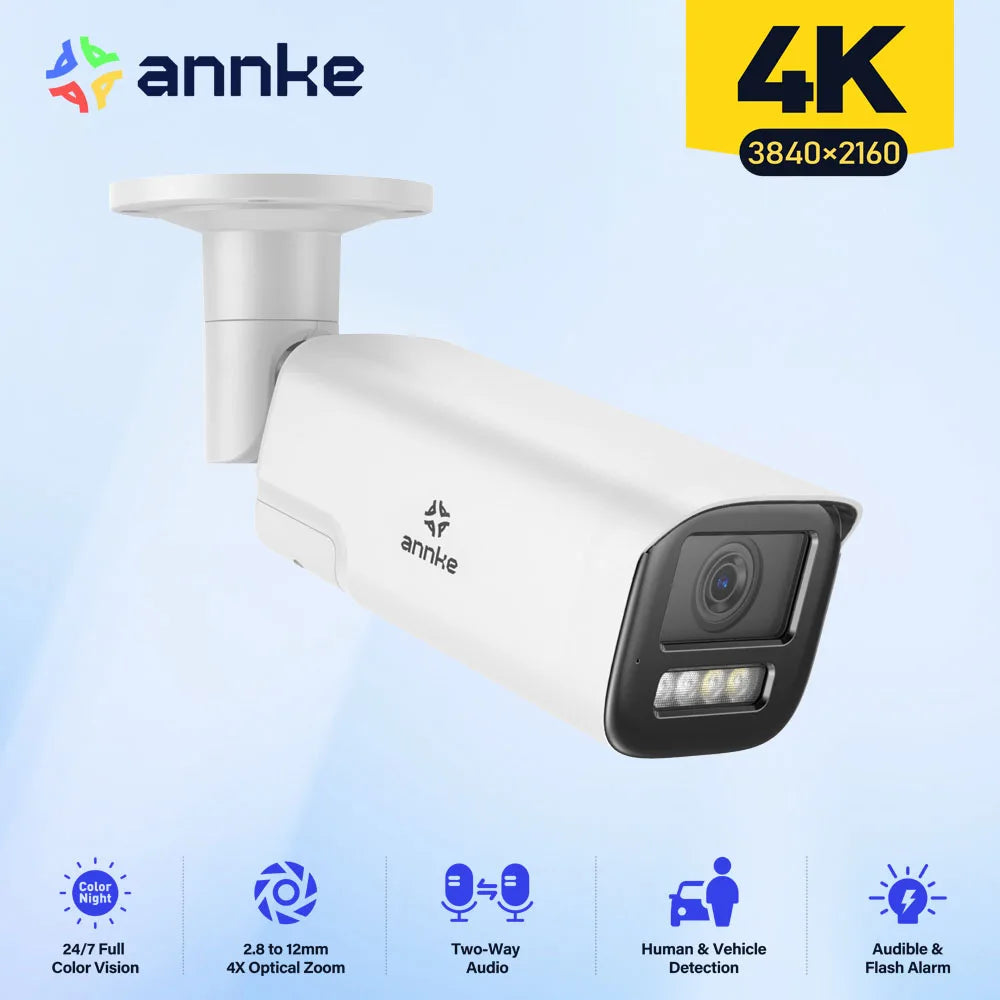

ANNKE 8MP 4K Varifocal Network Camera With Dual Light
ANNKE 8MP 4K Varifocal Network Camera With Dual Light
Couldn't load pickup availability
Experience precise, reliable security in any weather with the ANNKE 8MP 4K varifocal network camera featuring smart dual-light.
- Capture ultra-sharp 8MP/4K video (3840x2160) with a motorized 2.8-12mm varifocal lens, giving you flexible field-of-view from 106° to 35.6°.
- Smart dual-light and infrared illuminate up to 50 meters, delivering clear day and night footage while 3D DNR and 120 dB WDR keep detail in challenging scenes.
- Protect footage with on-board storage up to 512 GB, plus real-time security alerts and actions via built-in two-way audio, motion detection with human & vehicle detection.
- Rugged outdoor design with IP67 weatherproof rating, PoE and DC12V support, plus flexible installation options (ceiling, normal, wall) for any location.
IP Camera | ||
Camera |
Image Sensor |
1/2.4" Progressive Scan CMOS |
Max resolution |
3840*2160(8MP) |
|
Main Stream |
50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Substream |
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 16 Mbps |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
|
Built-in Microphone |
Record with audio, environment noise filtering |
|
Built-in Speaker |
Max. power consumption: 2.0 W, max. sound pressure level: 10 cm: 95 dB. |
|
Lens |
2.8 to 12 mm motorized varifocal |
|
DORI |
D: 68 to 200 m, O: 27 to 79 m, R: 13.6 to 40 m, I: 6.8 to 20 m |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 106° to 35.6°, vertical FOV 55.9° to 20°, diagonal FOV 127.4° to 40.8° |
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
Up to 50 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
|
API |
Open Network Video Interface Version (Profile S, Profile T, Profile G),ISAPI |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate mode, mirror, password protection, remote access |
|
Web Browser |
Plug-in required live view: IE 10, IE 11,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
|
APP |
PC: Windows, Mac OS; Smartphone: iOS, Android |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
12 VDC ± 25%, 0.9 A, max. 10.8 W, PoE: IEEE 802.3af, Class 3, max. 12.9 W |
|
Operating Conditions |
-22 °F – 140 °F/-30 °C – 60 °C.Humidity 95% or less (non-condensing) |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 |
|
Dimension (L X W X H) |
105 mm × 285.8 mm (Ø4.13" × 11.25") |
|
Weight |
Approx. 805 g (1.8 lb.) |
|
