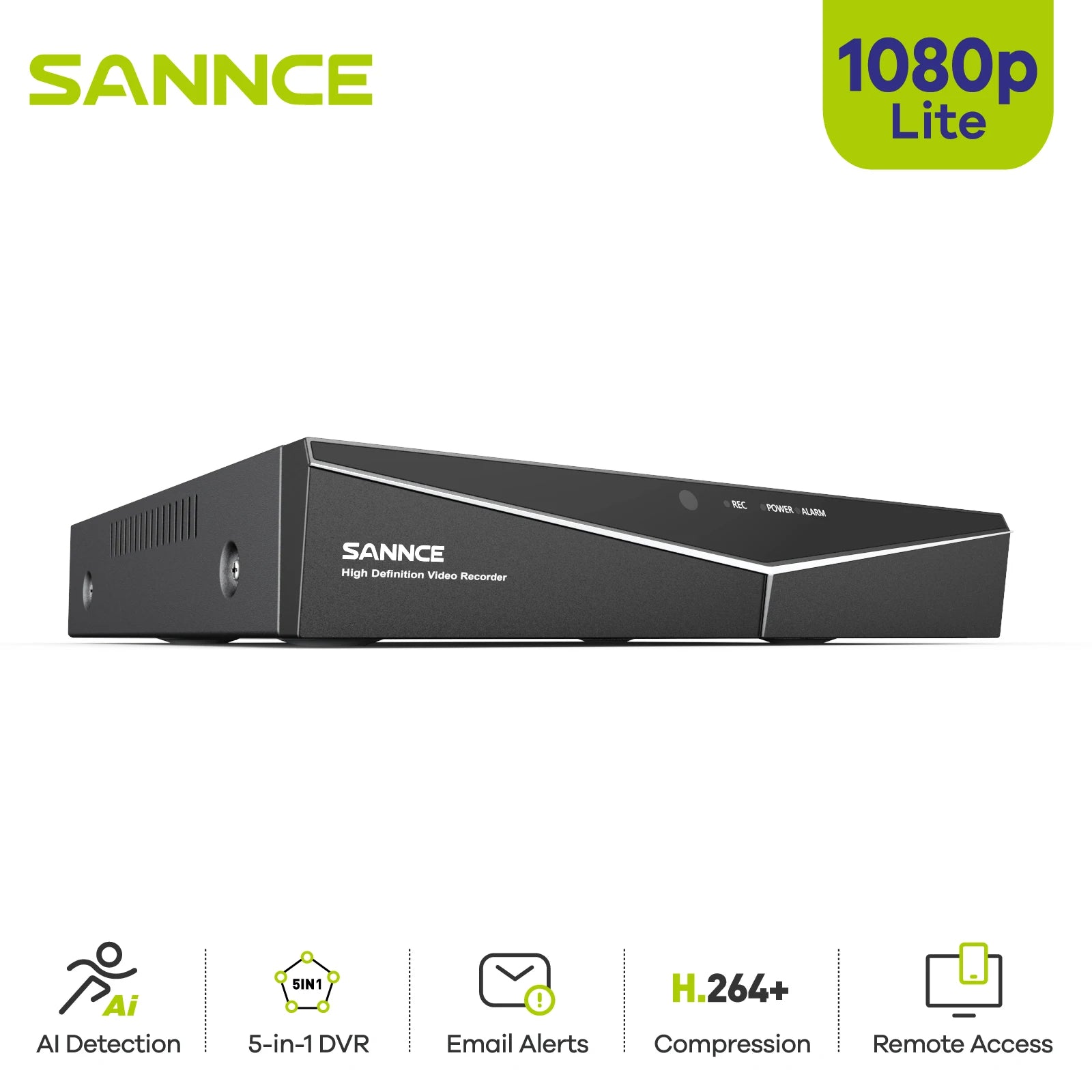

SANNCE 16 Channel 5 In 1 DVR H265 Plus Surveillance Recorder
SANNCE 16 Channel 5 In 1 DVR H265 Plus Surveillance Recorder
Couldn't load pickup availability
Upgrade your security with a 16-channel, 5-in-1 DVR that blends analog reliability with IP flexibility.

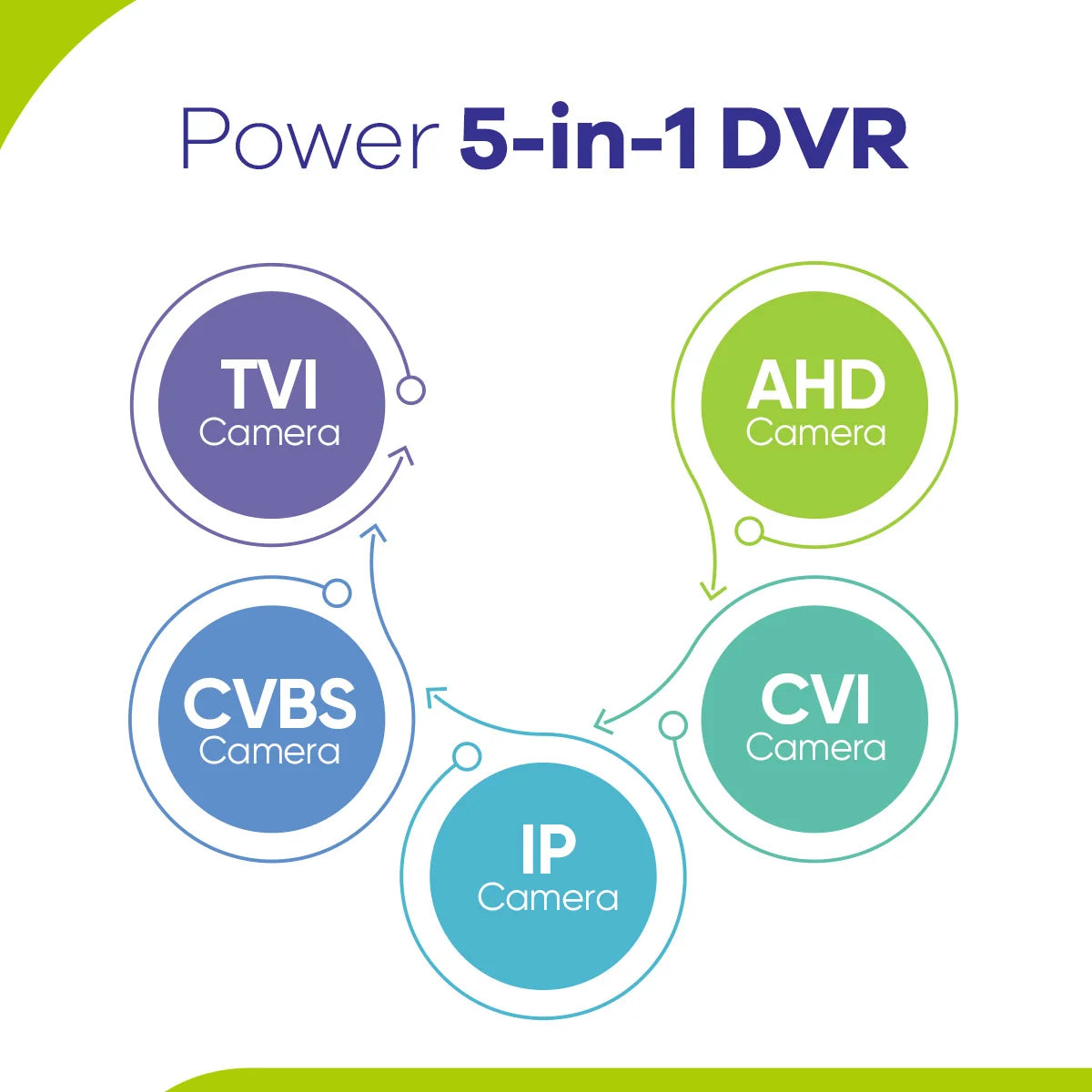

- It accepts Analog (TVI/AHD/CVI/CVBS) and IP cameras, giving you up to 16-channel HD video and HDMI/VGA outputs up to 1080P for clear viewing.
- Efficient H.265 Pro+/H.265/H.264+ compression reduces bandwidth and storage, while 1080P Lite recording and playback keep footage crisp.
- You can store footage on a SATA drive up to 6TB, choose from Manual, Motion, or Schedule recording, and playback across 16 channels in Analog mode.
- You can remotely monitor on iPhone, iPad, and Android via Ethernet, plus 2/1 audio I/O and DC12V power for reliable operation in conditions from -10°C to 55°C.
DVR | ||
Video & Audio |
Codec |
H.264+ |
Video input |
16*BNC |
|
HDMI output |
1*HDMI (MAX:1080P) |
|
VGA output |
1*VGA (MAX:1080P) |
|
Audio I/O |
2/1 |
|
Encode |
16*1080N@15fps |
|
Decode |
16*1080N@15fps |
|
Multi-mode |
Analog: 16*1080N@15fps; |
|
Hybird: 16*1080N@15fps(analog)+4*1080P | ||
IP: 16*1080P；8*5MP | ||
Playback |
16CH (Analog mode) |
|
Compression |
G.711a |
|
Intercom |
Support |
|
Hard Drive |
HDD |
1*SATA interface |
HDD Capacity |
Up to 8TB Capacity |
|
Management |
Record mode |
Manual>Motion detection>Schedule |
Inquire mode |
Inquire by Time/Calendar/Event/Channel |
|
Storage mode |
Sata HDD |
|
Backup |
Network, USB storage |
|

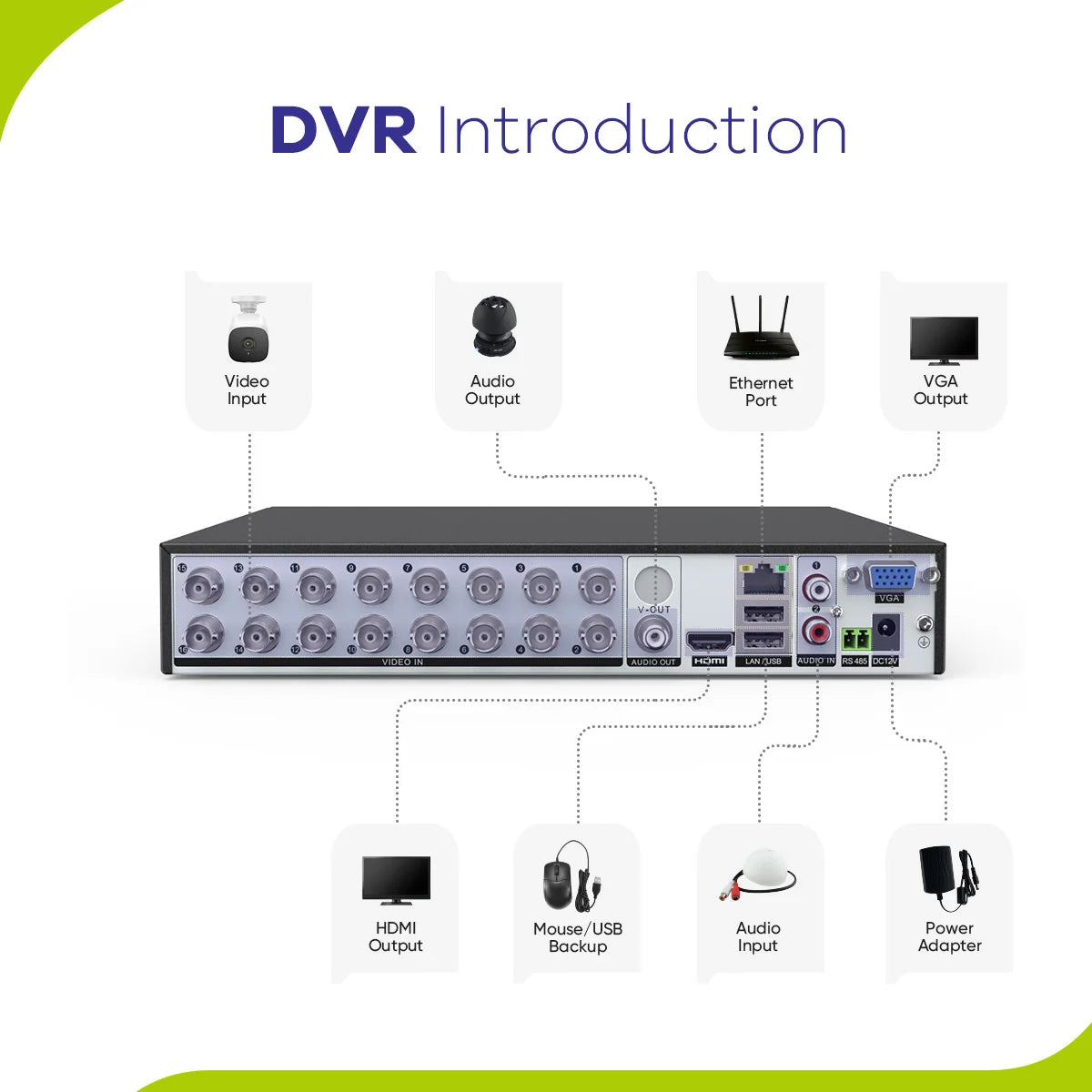

External Interface |
Ethernet port |
1*10/100Mbps Ethernet port, RJ45 port |
Alarm I/O |
0/0 |
|
PTZ control |
1*RS485, Support for multiple PTZ protocol |
|
USB Port |
2*USB2.0 ports |
|
General |
Power supply |
12V/2A |
Consumption |
<10W(Without HDD） |
|
Temperature |
0℃- + 55℃ |
|
Humidity |
10% -90% RH |
|
Dimension |
255(L)* 236mm(W)* 44mm(H) |
|
Weight |
Around 1KG |
|
